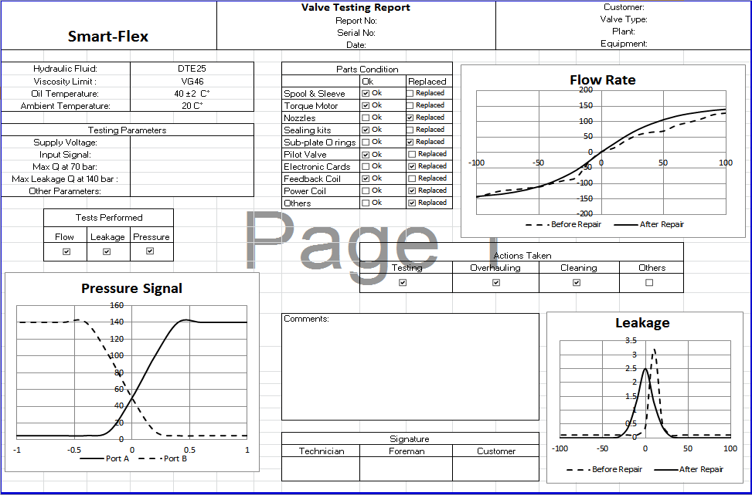

Testing Report Example.
Electrohydraulic Test-Rig.
Testing Report Example.
Electrohydraulic Test-Rig.
Completely dismantling the valves to their primitive parts for thorough cleaning and inspection.

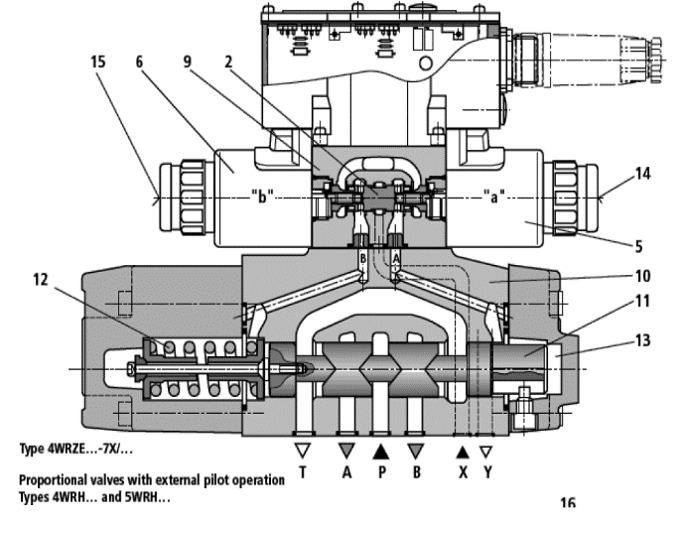

Supported Valves (Bosch Rexroth, MOOG, Star, EMG).
| Part | Estimated Cost Percentage compared to total repairing cost. |
|---|---|
| Positional Transducer | 8.9% |
| Filter | 1.1% |
| Electronic Cards | 14.2% |
| Spool With Sleeve | 53.2% |
| Control Nozzles | 1.2% |
| Torque Motor | 21.4% |

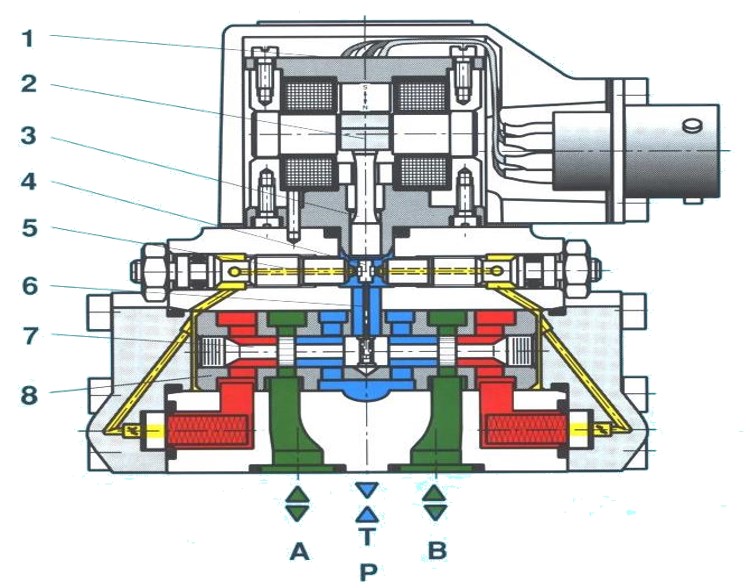

Servo-Valve Repair Cost breakdown.
.We at Al-Masria for Hydromecha excel at performing complicated repairs on all electrohydraulic components at the reduced price of a maximum 40% of the component’s original cost and our repair time is way shorter than main agencies.
.This price includes overhauling, mechanical repairing and testing, electronic cards repairing and testing, seal kit changing, calibration and suppling a certificate and detailed report for the repaired component.
.Changing crucial components such as spool and sleeve or a torque motor come at extra charge.
Cost Saving Comparison

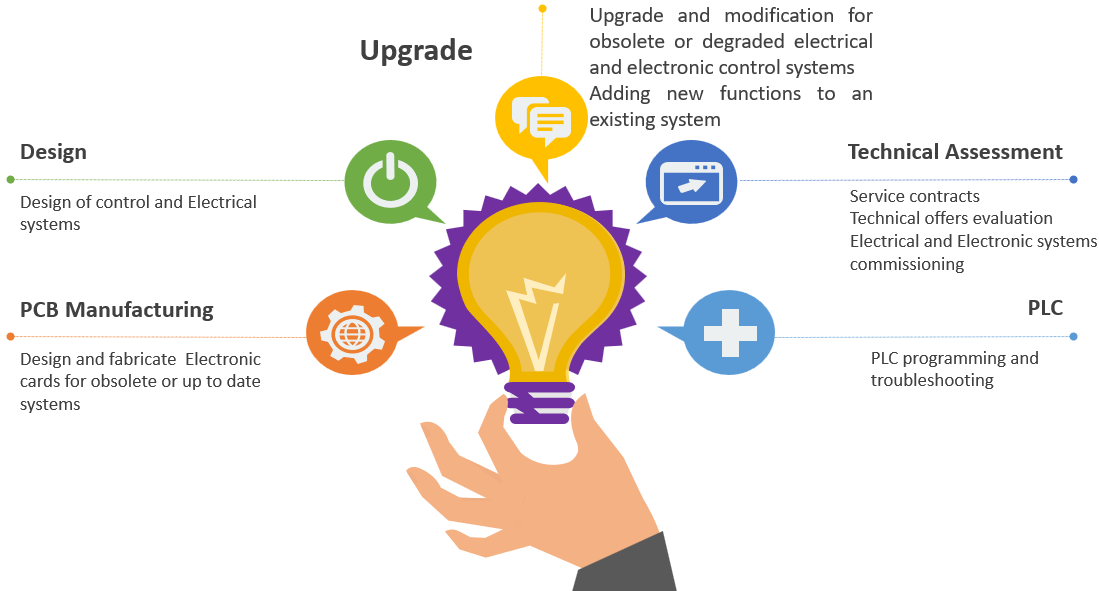

. Servo and propotional cards
. Drives
. Control PCBs

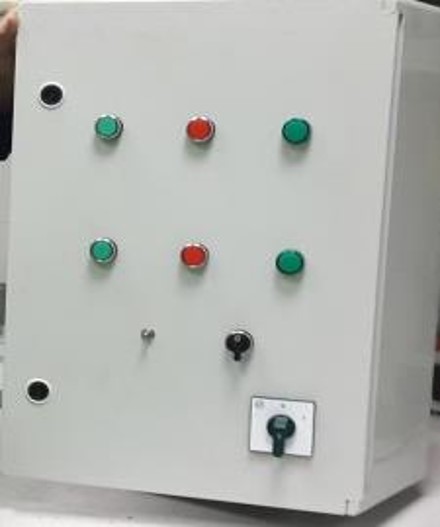

Design and implementation of Industrial Control Panels.

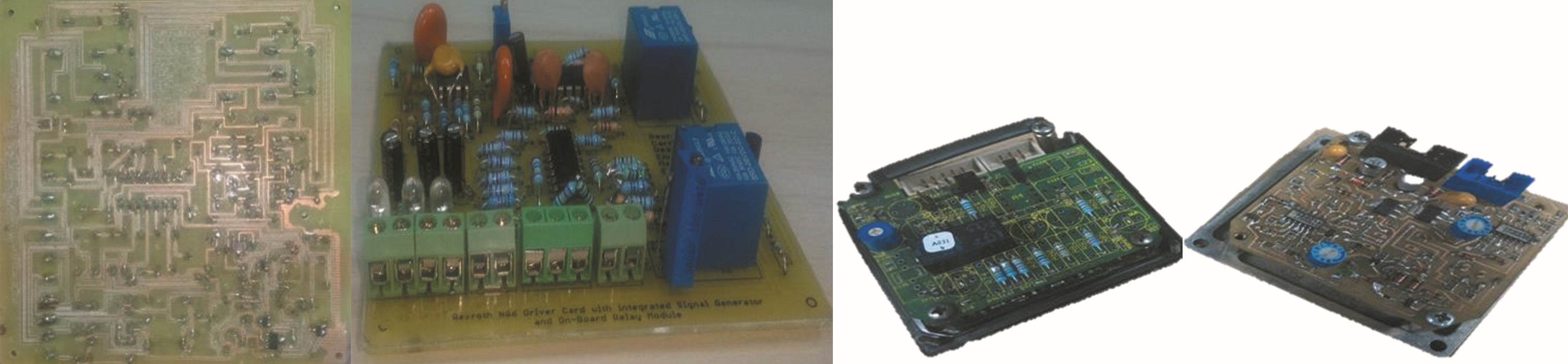

Manufacturing a wide range of industrial and control PCBs:
Designing and manufacturing of Rexroth servo valve control card with integrated Signal Generator and Reverse Engineering for MOOG Servo valve Electronic Card
. Almasria-for-Hydromecha also can provide reverse engineering service for a wide range of electronic cards
. Reverse engineering process is highly recommended when the cards are obsolete or its manufacturer price is relativity high

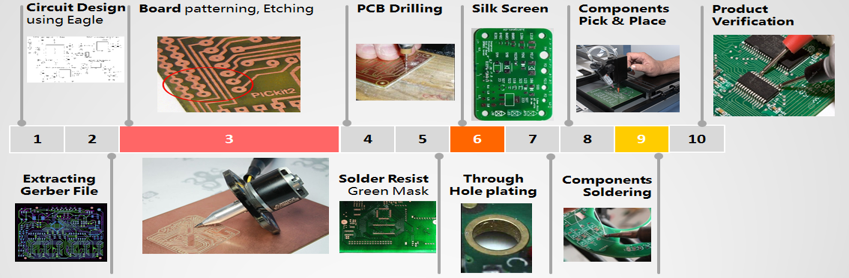

. Cards fabrication through specialized CNC machine is used to implement the final stages of reverse engineering process
